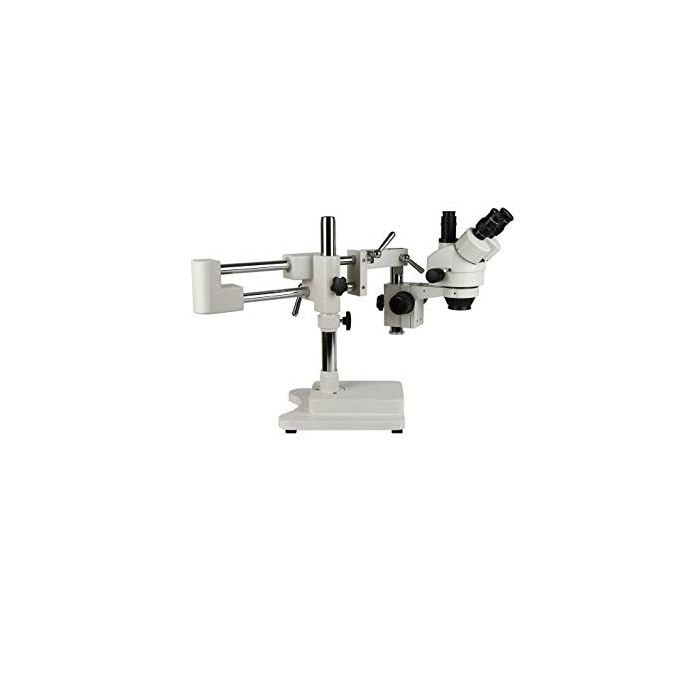

Trinocular Industrial Microscope 45X 90X 180X

Trinocular Industrial Microscope 45X 90X 180X

PHENIX #XTL-165

Feature:
Total magnification: 7 x - 45x/90x/180 x

Zoom tereo microscope: 1:6. 5;

Eyepiece:High eyespots wide-angle WF10 /20mm,wide angle WF20 /10mm(0X)

Sight glass tube:Hinge ternary,tilt 45, interpupillary distance 55-75mm

Objective:ontinuous variable times objective:.7X-4.5

Dioptric:inocular depending on the degree of the adjusting range is + / - 6

Frame:Double pole gimbal (WX type)

Pedestal:(V) big base, 200 x 245 mm;

View the diameter:5mm-30mm

Weight: 25 kg

Focusing mechanism:XTWZ stents

Working distance:When do not add any additional lens is 100 mm, add 0.5 X object lens is 165 mm, add 2 X object lens is 30 mm

Binocular viewing head with pair of 10x super-widefield eyepieces, adjustable interpupillary distance, fixed 45-degree vertical inclination to reduce eye and neck strain, and 360-degree rotation capability to enable sharing
0.7x-4.5x zoom objective provides continuous zoom magnification and longer focal length for inspecting large-scale specimens, a 0.5x Barlow lens extends the working distance, and a 2.0x Barlow lens extends the magnification range
Removable 8W fluorescent ring in a plastic housing provides bright, shadow-free illumination
Double-arm boom stand has 20" arms and 17" pillar to enable users to position the microscope head on three axes (X, Y, and Z)

The professional stereo zoom microscope has a pair of 10x super-widefield high-eyepoint eyepieces, a 0.7x-4.5x zoom objective, two Barlow lenses, and a double-arm boom stand. The microscope has an overall magnification range of 3.5x-90x. The binocular viewing head has an interpupillary range of 55 to 75mm, a 45-degree inclination to reduce eye and neck strain, and 360-degree rotation to enable sharing. The WH10x20mm super-widefield high-eyepoint eyepieces combine with the 0.7x-4.5x zoom objective to provide continuous zoom magnification and a longer working distance for inspecting large-scale specimens that require handling or repair. The microscope coms with 0.5x and 2.0x Barlow lenses that can be added to the objective to increase the magnification range. A Barlow lens with a magnification of less than 1.0 reduces magnification and increases the working distance, while a Barlow lens with a magnification greater than 1.0 increases the magnification and reduces the working distance. High-eyepoint eyepieces ease viewing for users who wear glasses, and dioptric adjustment accommodates individual eye-strength differences. A stereo microscope, sometimes called an inspection or dissection microscope, has low magnification and a long working distance that enables users to manipulate the object being inspected.

The removable 8W fluorescent ring light provides cool, white light for observing specimens as they would appear in their natural environment. A ring light provides shadow-free illumination. It has a 2-3/8" inner diameter and uses a 110V-120V power supply. The microscope has a double-arm boom stand that enables users to position the microscope head on all three axes (X, Y, and Z). Bilateral focus eases use for left- and right-handed users. The stand has 20" double arms, and a 30" overall length. The pillar is 17" and the focus rack has a 3" diameter. The solid cast-steel base is 2 x 8-1/4 x 10-1/4 inches (H x W x D, where H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back).
